General

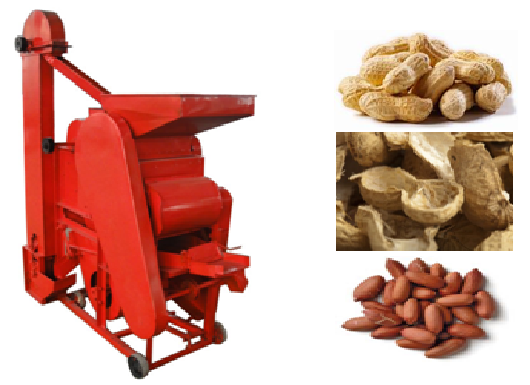

Peanut Shelling Machine is produced according to the national standards strictly. It consists of rasp bar, stake, intaglio, fan, gravity separator and second bucket, etc. The whole machine frame is made of high-quality steel and the shelling chamber is made of stainless steel. This peanut shelling machine has compact structure, easy operation and reliable performance. It is used to shell peanut; can separate shells and kernels with high-efficiency and almost without damage to the kernel; and the shelling rate can be ≥95%, the breaking rate is≤5%. While peanut kernels are used for food or the raw material for the oil mill, the shell could be used to make wood pellets or charcoal briquettes for fuel.
Working Principle
After starting, the shells of peanuts are shelled by the rolling force between the rotating rasp bar and the fixed intaglio, and then shells and kernels fall through the grid mesh down to the air duct, and the fan blows shells out. The kernels and the unshelled small peanuts fall into the gravity separator. The separated kernels are sent upward to the outlet and the separated unshelled small peanuts are sent downwards to the elevator, and the elevator sends the unshelled peanut to the fine grid mesh to be shelled again until the whole batch of peanuts are all shelled.
Advantages of Peanut Shelling Machine
1. Cheap price, high efficiency and low energy consumption
2. It can shell peanut completely; separate shells and kernels purely and almost without damage to
the kernel; and the shelling rate can be ≥95%, the breaking rate is≤5%.
3. It has compact structure, easy operation, reliable performance and easy maintenance.
4. Small occupation space.
5. The shelled kernels meet the hygiene standards.
Peanut Shelling Machine Technical Parameter
|
Model |
Capacity |
Power |
Shelling rate |
Breaking rate |
Losing rate |
Cleaning rate |
Weight(kg) |
|
PVG/AMS-100 |
100-150 kg/h
|
1-2 kw |
>95% |
<5% |
≤0.5% |
≥95.5% |
|
|
PVG/AMS -400
|
400 kg/h |
2.2 kw |
≥95% |
≤5% |
≤0.5% |
≥95.5% |
137Kg |
|
PVG-BK-70
|
500-700kg/h |
3 kw |
≥98% |
≤4% |
≤0.5% |
≥95.5% |
300-350Kg |
|
PVG- LM-012
|
1000kg/h |
2.2kw |
≥95% |
≤5% |
≤0.5% |
≥95.5% |
|
|
PVG/AMS -1500
|
1500kg/h |
5.5kw |
≥95% |
≤5% |
≤0.5% |
≥95.5% |
775Kg |
|
PVG/AMS-3000 |
3000kg/h |
11kw |
≥95% |
≤5% |
≤0.5% |
≥95.5% |
960Kg |
|
PVG/AMS-3300 |
3300kg/h |
15kw |
≥95% |
≤5% |
≤0.5% |
≥95.5% |
1315Kg |
